Description

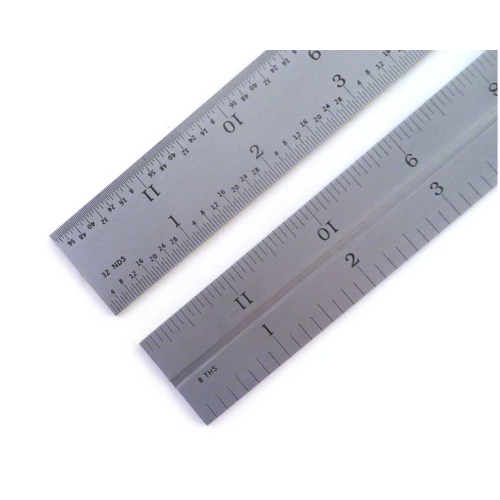

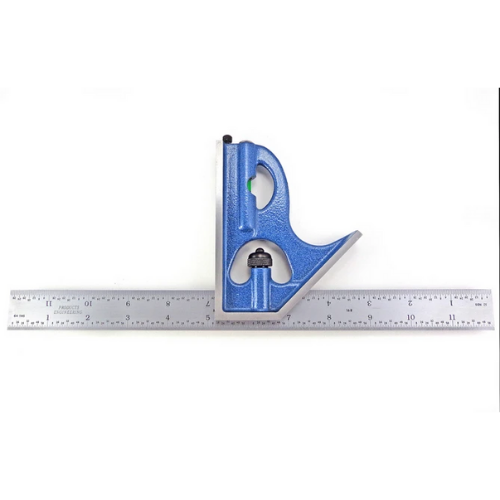

This precision 2 piece combination square is perfect for project/part layout, machine set-up, determining level/plumb, or as a depth, height, or marking gauge. They are manufactured in accordance with the derived tolerances from the FEDERAL SPECIFICATION NO. GGG-S-656E 29 Jan 1996 and are guaranteed to be square to within 0.004″ (four thousandths of an inch) over the length of the blade. This type of square is widely used by metal and woodworkers alike. Made in the USA by Products Engineering Corporation (PEC Tools) a premier US tool manufacturer. Contains a hardened and tempered no-glare satin chrome finished steel blade. Blade markings are precision photo etched and then black filled for easy readability. Head has a blue baked-on finish on a machined cast iron head with an integrated spirit level. Includes with a hardened steel scribe. Comes in blow molded plastic case
Blade length: 12″
Blade width: 1″
Blade thickness: 0.085″
Graduations: 4R (1/8″, 1/16″, 1/32″, 1/64″)
Head height: 4-3/4″
Head width: 3-1/2″
Head thickness: 3/4″
